Product Overview

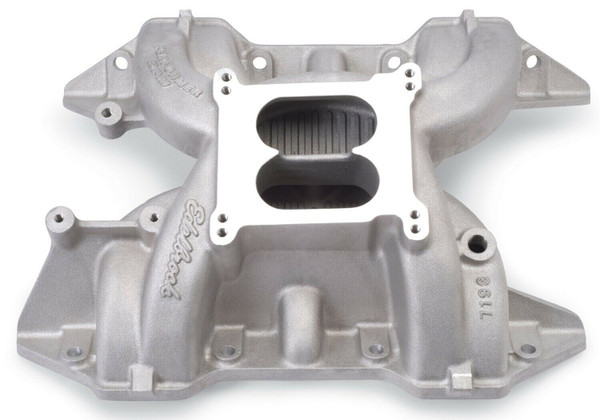

Edelbrock 7193 Performer RPM Intake Manifold, Mopar 413 426 440 new in the box.
Edelbrock Part # 7193 Performer RPM 440 intake manifold is designed for 413-426-440 c.i.d. Chrysler V8 applications. The dual-plane design results in excellent low-rpm torque and outstanding high-rpm hp. For high-performance street/strip applications.
Installation Notes:
- Recommended intake gasket: Edelbrock # 7225.
- Manifold height: A-4.90", B-5.80"
- Carb pad height: 5.35". Manifold is 1.7" taller than stock
- Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use # 1481 or # 1843 throttle/transmission lever kit.
- Port exit dimensions: 1.13" x 2.09"
- Manifold measure 8.75" across block
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
- Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
