Product Overview
EdelBrock 2701 SBC Performer EPS Aluminum Intake Small Block Chevy 305 327 350.

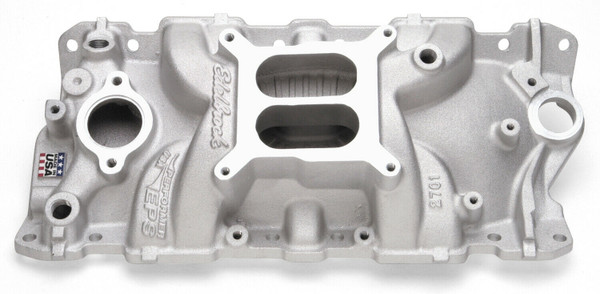

Edelbrock Part # 2701 Performer EPS intake manifold is designed for 1986 and earlier 262-400 cubic-inch Chevys. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response. With that the Edelbrock Performer EPS intake manifold has a runner design that's "tuned" for peak torque at 3500 rpm on a 350-inch engine making it ideal for power from off-idle to 5500 rpm. Dyno tests showed gains of 5 hp and 9 ft-lbs. of torque over the Edelbrock Performer manifold #2101 on a 350 Chevy. From 3000 to 4500 rpm, the power increases averaged 5+ ft-lbs. of torque for more performance where you need it most.
Installation Notes:
- Manifold ht: A-3.74", B-4.80"
- Carb pad height: 4.27"
- Carb recommendations: Edelbrock AVS2 or Performer Series 500-650 cfm
- Port exit dimensions: 1.15" x 1.87".
- Recommended intake gasket: Edelbrock # 7201.
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
- Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
- NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
- DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
- Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
- Will not fit under stock Corvette hood.
- Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality.
- Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage
